Storage Tanks – Types, Design Considerations, Materials of Construction, Inspection & Maintenance

Storage tanks are critical components of oil & gas, petrochemical, and industrial facilities. They are used to safely store a wide variety of liquids and gases, including crude oil, refined petroleum products, chemicals, and water. This page offers a complete guide to the design, classification, operation, and maintenance of industrial storage tanks, with a focus on practical engineering applications and compliance with international standards.

Purpose and Importance of Storage Tanks

In any process facility, storage tanks serve as buffers between production, processing, and distribution. They ensure continuous plant operation by compensating for flow rate variations and facilitating inventory management. From upstream crude oil storage to downstream blending and distribution terminals, tanks play a key role in both safety and logistics.

Their design must take into account fluid properties, environmental conditions, operating pressures, and industry codes. Poorly designed or maintained tanks can lead to leaks, contamination, fire hazards, or even catastrophic failures—making engineering diligence critical.

Classification of Storage Tanks

Storage tanks are typically classified based on the type of fluid they store, pressure requirements, and roof configuration. The two most common categories are atmospheric and pressurized tanks.

• Atmospheric Storage Tanks operate at or near ambient pressure and are used for fluids like crude oil, diesel, or water. They are usually designed according to API 650 or similar standards.

• Pressurized Tanks are designed to handle higher pressures and are suitable for storing LPG, ammonia, or other volatile substances. These tanks follow design standards such as API 620 or ASME Section VIII.

Tanks can also be aboveground or underground, depending on site conditions, safety requirements, and environmental regulations.

Types of Storage Tanks

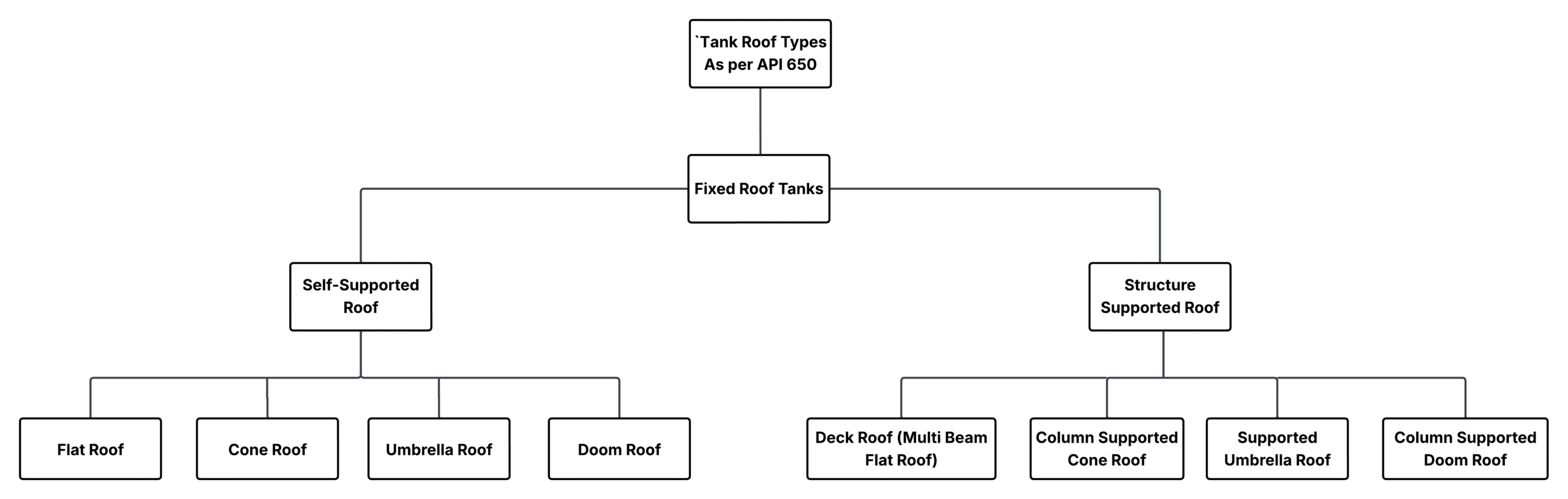

Fixed Roof Tanks

Fixed roof tanks represent one of the most fundamental and widely used storage solutions in industrial applications, primarily designed for maintaining stable liquids like water, diesel, and fuel oil. Characterized by their permanently affixed conical or dome-shaped roof structure, these tanks provide reliable containment while minimizing vapor space between the liquid surface and tank ceiling. A critical component is the breather valve (also called pressure-vacuum relief valve), which automatically regulates internal pressure by releasing vapors during filling operations and admitting air during product withdrawal. The construction typically utilizes carbon steel or stainless steel materials depending on the stored product’s corrosiveness, with capacities ranging from small 500-gallon units to massive million-gallon storage vessels. These tanks are particularly favored for their simple design, cost-effectiveness, and low maintenance requirements compared to floating roof alternatives. Environmental considerations include secondary containment systems to prevent leaks and insulation options for temperature-sensitive products. Common applications extend beyond petroleum to include chemical storage, agricultural uses, and municipal water reserves. Industry standards such as API 650 and ASME codes govern their fabrication to ensure structural integrity and safety compliance. While unsuitable for highly volatile substances due to their fixed vapor space, their durability makes them ideal for long-term storage of stable liquids with minimal evaporation losses. Modern variants may incorporate advanced monitoring systems for liquid level measurement and vapor recovery units to enhance environmental performance.

Floating Roof Tanks

Floating roof tanks are specialized storage systems designed for volatile petroleum products like gasoline, crude oil, and chemical solvents. Their distinctive feature is a buoyant roof that rises and falls with the liquid level, effectively eliminating vapor space to dramatically reduce evaporation losses. These tanks come in two primary configurations: external floating roof (EFRT) designs where the roof is exposed to the atmosphere, and internal floating roof (IFRT) systems that feature a secondary fixed roof for additional protection. The floating deck typically incorporates sealing mechanisms to prevent product leakage while allowing smooth vertical movement. Common materials include aluminum or steel roofs with elastomeric seals that adapt to temperature-induced expansions. Modern versions often include advanced vapor recovery systems and rim-mounted secondary seals to meet stringent environmental regulations. Their design significantly reduces both product loss and fire hazards compared to fixed roof tanks. API 650 standards govern their construction, with additional requirements for secondary containment in ecologically sensitive areas. While requiring more maintenance than fixed roof tanks, their operational efficiency makes them indispensable for bulk storage of volatile liquids in refineries and terminals.

Dome Roof and Cone Roof Tanks

Dome roof and cone roof tanks represent specialized fixed-roof designs optimized for structural integrity and vapor management. The dome-shaped variant, with its curved geometry, offers superior strength-to-weight ratio, making it ideal for refrigerated storage tanks and containers holding light hydrocarbons under pressure. Cone roof tanks feature a sloped design that efficiently sheds precipitation while providing cost-effective vapor containment for stable liquids. Both configurations significantly reduce product evaporation compared to open-top designs while maintaining easier access than floating roof alternatives. Dome roofs are particularly favored in LNG storage and volatile chemical applications due to their enhanced pressure resistance. These tank designs comply with API 650 and ASME standards, ensuring safe operation for both atmospheric and low-pressure storage scenarios.

Horizontal Tanks

Horizontal storage tanks are widely used in industries such as petroleum, chemical processing, and water management due to their efficient design and versatility. These cylindrical vessels are typically constructed from steel for durability, though materials like fiberglass and polyethylene are also employed for specialized applications. To ensure structural integrity, their length is generally limited to no more than six times their diameter, preventing deformation under pressure. Standard features include pressure-vacuum vents to regulate internal conditions, gauge hatches for manual inspections, and sampling wells for liquid testing. When installed underground, these tanks often incorporate cathodic protection systems—either through sacrificial anodes or impressed current methods—to mitigate corrosion and extend operational life.

Maintenance and Industry-Specific Considerations

While horizontal tanks are robust, their longevity depends on proper maintenance and industry compliance. Refined petroleum products often contain corrosion inhibitors, which can inadvertently reduce the effectiveness of internal cathodic protection, necessitating supplemental coatings like epoxy or polyurethane. Regulatory standards such as API 650 for welded steel tanks and UL 142 for fire-resistant designs further dictate their construction and use. Common applications range from fuel storage (gasoline, diesel) to chemical containment (acids, solvents) and water management systems, making them indispensable in industrial infrastructure. By adhering to these engineering and maintenance protocols, operators can optimize both safety and performance.

Spherical and Bullet Tanks

Spherical (sphere) and horizontal bullet tanks are engineered for high-pressure storage of liquefied gases like LPG, hydrogen, and compressed natural gas. Their distinctive shapes – the sphere’s uniform curvature and the bullet tank’s cylindrical design with hemispherical ends – optimize structural integrity by evenly distributing internal stresses. These pressure vessels typically operate at 5-250 psi and are constructed from high-strength carbon steel or specialized alloys to withstand extreme pressures. Spherical tanks offer maximum volume efficiency for large-scale storage, while bullet tanks provide practical solutions for transportation and space-constrained installations. Both designs incorporate safety features including pressure relief valves, thermal insulation, and corrosion-resistant coatings. Manufactured to ASME Boiler and Pressure Vessel Code standards, they are critical for industrial gas storage, petrochemical plants, and energy sector applications where safe containment of volatile substances is paramount.

Storage Tank Design Considerations

Proper storage tank design is essential to ensure operational safety, structural stability, and full compliance with industry standards such as API 650 and API 620. A range of interdependent parameters must be evaluated to achieve a robust design:

• Tank Diameter and Height: These are determined based on the required storage capacity, available plot space, tank farm layout, and the fluid’s properties. Designers must also account for freeboard, settling allowance, and operational levels.

• Corrosion Allowance: An additional wall thickness (typically 1.5–3 mm) is incorporated into the design to compensate for long-term material degradation due to internal fluid corrosion or external atmospheric exposure.

• Nozzles and Manways: Proper placement and sizing of nozzles, manways, and sumps ensure accessibility for filling, draining, sampling, inspection, venting, and instrument connections. Reinforcement around openings is also considered to maintain shell strength.

• Foundation Design: Storage tanks are typically supported on ringwall foundations, slab-on-grade, or compacted gravel pads. The foundation design considers soil bearing capacity, differential settlement control, uplift resistance, and provision of drainage to prevent subgrade saturation.

• Seismic and Wind Loads: In high-risk regions, tanks must be checked for seismic base shear, sloshing effects, anchorage needs, and wind-induced overturning or buckling. Design is done in accordance with API 650 Appendix E for seismic and Section 5.11 for wind.

In addition, all design calculations must incorporate factors such as internal design pressure or vacuum, operating and design temperatures, fluid density and viscosity, external corrosion exposure, maintenance access, and thermal expansion. Adherence to regulatory codes and local environmental requirements is also mandatory throughout the design process.

Storage Tank Materials and Construction Grades

Material selection for storage tanks in the oil, gas, and chemical process industries is a critical design consideration. It must ensure chemical compatibility, mechanical strength, weldability, corrosion resistance, and compliance with industry standards such as API 650 and API 620. The choice of material depends on the characteristics of the stored fluid (e.g., corrosiveness, temperature, pressure), environmental exposure, and intended service life.

Below are the most commonly used materials with their detailed descriptions and applications:

Carbon Steel

1. ASTM A36

• Description: Standard carbon structural steel with minimum yield strength of 250 MPa (36 ksi).
• Applications: Used in shell courses, bottoms, and roof structures of API 650 tanks for non-corrosive fluids such as water, diesel, or light hydrocarbons at ambient conditions.

2. ASTM A283 Grade C

• Description: Low-to-intermediate tensile strength carbon steel, with yield strength of 205 MPa (30 ksi).
• Applications: Suitable for atmospheric storage tanks with low pressure and low-temperature conditions.

3. ASTM A516 Grade 60 / 65 / 70

• Description: Carbon steel plate for moderate and lower temperature service, with excellent notch toughness.

  • Grade 60: Yield strength ~240 MPa

  • Grade 65: Yield strength ~260 MPa

  • Grade 70: Yield strength ~275 MPa

• Applications: Widely used for shell and bottom plates in tanks storing crude oil, sour service fluids (with added restrictions), and process fluids where toughness and strength are critical.

Low Alloy Steels

4. ASTM A537 Class 1

• Description: Pressure vessel quality steel with higher strength and notch toughness, normalized.
• Applications: Used in tanks requiring better mechanical properties under pressure, such as API 620 low-pressure tanks or elevated temperature services.

5. ASTM A633 Grade C / E

• Description: Normalized high-strength low-alloy structural steel for enhanced impact resistance.
• Applications: Tanks in cold climates or seismic zones requiring higher impact toughness.

Stainless Steels

6. ASTM A240 Type 304 / 304L

• Description: Austenitic stainless steel with good corrosion resistance.
• Applications: Suitable for storage of potable water, organic chemicals, or mildly corrosive fluids at ambient temperatures.

7. ASTM A240 Type 316 / 316L

• Description: Similar to 304 but with added molybdenum for improved pitting resistance in chloride environments.

• Applications: Used in chemical storage tanks containing brine, caustic soda, acids (e.g., acetic acid, sulfuric acid), or marine environments.

8. ASTM A240 Duplex 2205 (UNS S32205)

• Description: High-strength stainless steel with excellent chloride stress corrosion cracking resistance.
• Applications: Ideal for offshore applications, sour service, or highly corrosive chemical storage.

Aluminum Alloys

9. ASTM B209 5052 / 5083 / 6061

• Description: Corrosion-resistant, lightweight aluminum plates.
• Applications: Used for internal floating roofs, certain cone roofs, or tanks storing aviation fuels and oxidizing chemicals. Not suitable for high-pressure applications.

Non-Metallic and Composite Materials

10. FRP (Fiberglass Reinforced Plastic)

• Description: Composite material made of glass fiber and thermoset resin (e.g., vinyl ester or epoxy).
• Applications: Common in tanks for hydrochloric acid, sodium hypochlorite, wastewater, or effluents in chemical plants. FRP is corrosion-resistant and lightweight but has temperature and mechanical limitations.

Lined Carbon Steel

• Description: Internally lined steel tanks using vulcanized rubber sheets, epoxy coatings, or glass flake linings.
• Applications: Cost-effective solution for storing corrosive acids (e.g., HCl, H₂SO₄), caustics, and brine water when full stainless steel construction is economically infeasible.

Additional Considerations for Material Selection:

• Corrosion Allowance: Typically ranges from 1.5 mm to 3 mm depending on product aggressiveness and service life.
• Post-Weld Heat Treatment (PWHT): Required for thicker materials or specific alloy grades, especially in sour service.
• Compatibility with Internal Lining: Some coatings or linings may limit the material types that can be used.
• Temperature and Pressure Range: Materials must comply with the design conditions defined under API 650 (up to 93°C and near-atmospheric pressure) or API 620 (low-pressure, up to 260°C).
• H₂S or Sour Service Suitability: Requires notch-tough materials with low sulfur content and hardness control as per NACE MR0175/ISO 15156.

Summary Table of Common Tank Materials

Material Code	Description	Yield Strength (MPa)	Typical Application
A36	Structural carbon steel	250	General tank shell, bottom, roof
A516 Gr 70	Pressure vessel steel	275	Sour service, crude oil tanks
A240 316L	Stainless steel	170–310	Acidic fluids, chemical tanks
A537 Cl 1	Normalized alloy steel	345	Low-pressure tanks, elevated temps
Duplex 2205	High-strength SS	450+	Offshore, sour, corrosive fluids
FRP	Composite material	N/A	Wastewater, acids, brine
Lined CS	Epoxy/rubber coated	N/A	Corrosive chemicals, acids

Tank Inspection and Testing

Regular inspection and testing are essential to ensure safe operation and regulatory compliance. Storage tanks are inspected both externally and internally at fixed intervals.

Common Inspection Methods:

• Visual Inspection for corrosion, cracks, and structural damage
• Ultrasonic Thickness Testing (UTT) to measure wall thickness and detect thinning
• Magnetic Particle or Dye Penetrant Testing for crack detection
• Hydrostatic Testing to verify tank integrity before commissioning or after major repairs
• API 653 Inspections for aboveground atmospheric tanks, including fitness-for-service evaluations

Digital inspection tools, drones, and robotic crawlers are increasingly used for more efficient, accurate, and safer inspections.

Maintenance and Repair of Storage Tanks

Tank maintenance includes both routine and corrective actions aimed at extending service life and preventing failures. Common maintenance activities include:

• Repainting and coating applications to prevent corrosion
• Replacing gaskets, nozzles, or floating roof seals
• Welding patch plates on damaged shell or bottom areas
• Cleaning tanks before inspection or change of service
• Cathodic protection system checks and maintenance

Maintenance shutdowns should be planned well in advance with detailed scope, job cards, permits, and safety measures in place.

Safety and Environmental Protection

Storage tanks must be equipped with features to minimize safety risks and environmental impact. This includes:

• Overfill protection systems like alarms, sensors, and emergency shutoff valves
• Vapor recovery systems to reduce VOC emissions
• Bund walls and containment dykes to control spills
• Flame arrestors and pressure relief valves for fire protection
• Access ladders, platforms, and safety rails for operator safety

Compliance with standards such as API, OSHA, NFPA, and local environmental regulations is mandatory.
