Valve Trim Guide – Parts, Materials, API Chart & Selection Criteria
Last Updated: 26-Jul-2025
What is Valve Trim?
Valve trim is the collective term for the internal parts of a valve that can be removed, replaced, and come into direct contact with the flow medium. This valve trim guide explains the design, function, and selection of these components, which typically include the disc (or plug), seat(s), stem, backseat, bushings, and sleeves. The materials used for valve trim are carefully chosen to withstand pressure, temperature, corrosion, and erosion, ensuring long-term performance and reliability. To simplify specification across manufacturers, the API trim chart assigns standardized numbers to common material combinations. Engineers also rely on clear selection criteria when choosing the right trim for specific applications, balancing flow control, sealing performance, and durability.
API has standardized trim materials by assigning a unique number to each set of trim materials.
Primary Functions of Valve Trim
Valve trim plays a critical role in valve selection and performance, and engineers must evaluate it against specific selection criteria such as flow characteristics, service conditions, and required durability. The trim consists of both stationary and moving parts that interact with the fluid, including the plug, seat, stem, and cage (in control valves). Together, these components are responsible for precise flow control, pressure management, and reliable sealing.
Key functions of valve trim include:
Flow Control – Modulates flow by adjusting the position of the plug/disc relative to the seat, controlling the rate, pressure, and direction of the fluid.
Pressure Regulation – Manages pressure drops across the valve to ensure system stability and protect against surges.
Sealing Performance – Provides tight shutoff between disc/plug and seat to prevent leakage when closed.
Noise and Cavitation Reduction – Specialized trims (e.g., multi-stage, anti-cavitation) minimize vibration, erosion, and noise in high-velocity or high-pressure service.
Durability in Harsh Conditions – Constructed from robust materials such as stainless steel, Stellite, or tungsten carbide to resist corrosion, abrasion, and high temperatures.
Key Components of a Valve Trim
Valve trim consists of several critical components that directly interact with the flow medium. Each part has a distinct role in achieving precise flow control and ensuring valve reliability. Understanding these components is crucial when applying proper selection criteria for valve trim in various services.
Disc/Plug
The disc (in globe valves) or plug (in control and plug valves) is the primary throttling component that moves into or away from the seat to modulate or stop flow. Its design can vary (flat, tapered, contoured) based on the valve type and required flow characteristics. In high-performance or erosive applications, hard-facing materials like Stellite are used for durability.
Seat
The seat is the static part of the valve trim that contacts the disc or plug to form a seal when the valve is closed. It must be erosion and corrosion resistant to maintain leak-tightness over time. Soft-seated valves may use PTFE or elastomers for bubble-tight sealing, while metal-seated valves use harder alloys for high-temperature or abrasive conditions.
Stem
The stem is a precision-machined shaft that connects the actuator or handwheel to the disc/plug. It converts rotary or linear motion to operate the valve. The stem must withstand bending, tensile, and torsional stresses, and its surface must be resistant to galling and corrosion. Special alloys are chosen when dealing with aggressive fluids (e.g., sour service or seawater).
Bushings
Bushings (or stem guides) are sleeve-like components that support the stem and reduce metal-to-metal contact, thereby lowering friction and extending stem life. In high-cycle or high-pressure valves, low-friction materials like PTFE or graphite composites are used to ensure smooth movement and prevent galling. They also help in stem alignment and reduce side loading.
Valve Trim Materials: How to Choose the Right One
Valve trim materials are standardized by the API, which assigns unique trim numbers to specific material combinations for disc, seat, stem, and other internal parts. Choosing the correct material is critical for durability, corrosion resistance, and maintaining performance under high pressures and temperatures.
Common Valve Trim Materials:
- Stainless Steel (304, 316) – Resistant to corrosion, suitable for general-purpose applications.
- Monel & Inconel Alloys – Ideal for high-temperature or highly corrosive environments.
- Tungsten Carbide – Extremely hard, used in erosive services such as slurry flow.
- Bronze / Brass – Common in low-pressure, non-corrosive applications.
API Trim Chart Example:
| API Trim Number | Disc | Seat | Stem | Notes |
|---|---|---|---|---|
| 1 | Stainless Steel | Stainless Steel | Stainless Steel | Standard corrosion-resistant trim |
| 2 | Monel | Monel | Stainless Steel | Suitable for seawater or acidic services |
| 5 | Hardened Stainless Steel | Stainless Steel | Stainless Steel | For high erosion / high pressure applications |
Note: Always consult the official API standards for full material combinations and operational limits.
Hardened Trim
Most high-pressure applications are suitable for hardened trim. Although solid hard plugs are more cost-effective for valves under 1 inch in diameter, a hard material overlay is more cost-effective for larger sizes. For services like superheated steam, two-phase flow, and temperatures above 600°F (315°C), these overlays are effective.
How to Select the Right Valve Trim: Criteria & Guidelines
Selecting valve trim involves matching the trim design and material to your process conditions. Key selection criteria include:
- Fluid Type – Consider corrosive, erosive, or slurry media. Certain materials are better suited for specific fluids.
- Temperature & Pressure – High temperature or pressure requires hardened or exotic alloy trims to maintain performance.
- Flow Characteristics – Linear vs. rotary motion trims affect flow control accuracy. Multi-stage trims may be required to reduce noise or cavitation.
- Sealing Requirements – Determine acceptable leakage rates. Soft-seat or metal-seat trims may be used depending on tightness needed.
- Environmental Conditions – Exposure to external corrosion or abrasive particles can dictate material selection.
- Standards Compliance – Ensure selected trim conforms to relevant API or ASME codes.
Following these criteria ensures optimal valve performance, longevity, and safety in industrial operations.
Importance of Correct Valve Trim Selection
Valve Trim Selection is Critical?
Incorrect valve trim selection can lead to a range of operational and maintenance issues that compromise system performance:
Premature wear and erosion of internal parts – Using unsuitable materials or designs can accelerate erosion of the disc, seat, or stem, especially in high-pressure, high-velocity, or abrasive fluid services. This reduces valve life and increases replacement frequency.
Leakage or failure to achieve desired shutoff – A mismatch between trim material and fluid characteristics can prevent proper sealing, leading to leaks, process inefficiency, or safety hazards. Correct trim ensures tight shutoff and reliable operation.
Excessive noise, vibration, or cavitation – Improperly selected trims may cause turbulent flow, high-pressure drops, or cavitation, resulting in loud operational noise, vibration-induced wear, and potential damage to adjacent piping and equipment.
Reduced operational efficiency and higher maintenance costs – Poor trim selection can create unnecessary pressure losses, limit flow control accuracy, and require frequent maintenance. This increases operational costs and reduces overall process efficiency.
By carefully considering the parts, materials, API chart, and selection criteria, engineers can optimize valve performance, prevent costly downtime, and improve overall reliability of the piping system. Proper selection ensures safety, longevity, and consistent process control in demanding industrial applications.
Valve Trim in Different Valve Types
Valve trim design varies depending on the type of valve, fluid characteristics, and operating conditions:
Globe Valves – These valves use linear motion trim, where the disc moves perpendicularly to the seat, providing precise flow control and throttling. The trim design allows accurate modulation of flow rate, making it ideal for applications requiring fine control over pressure and temperature.
Ball Valves – Ball valves incorporate rotary motion trim, where the ball rotates to open or close the flow passage. This trim type is suitable for reliable on/off operation and moderate throttling, offering low leakage and durability in systems handling high-pressure or corrosive fluids.
Butterfly Valves – Butterfly valves feature rotary disk trim designed for large flow capacities with minimal pressure drop. The trim must withstand high-velocity flows and ensure tight sealing when closed, making it a cost-effective option for bulk fluid handling in pipelines.
Control Valves – Control valves often include specialized trims such as multi-stage or anti-cavitation trims. These trims manage high-pressure drops, reduce turbulence, minimize noise, and prevent cavitation or vibration damage, ensuring stable operation in demanding industrial processes.
Choosing the correct trim type, material, and design combination ensures that the valve performs effectively in its intended application, maintains process efficiency, reduces maintenance needs, and extends service life under varying pressure, temperature, and fluid conditions.

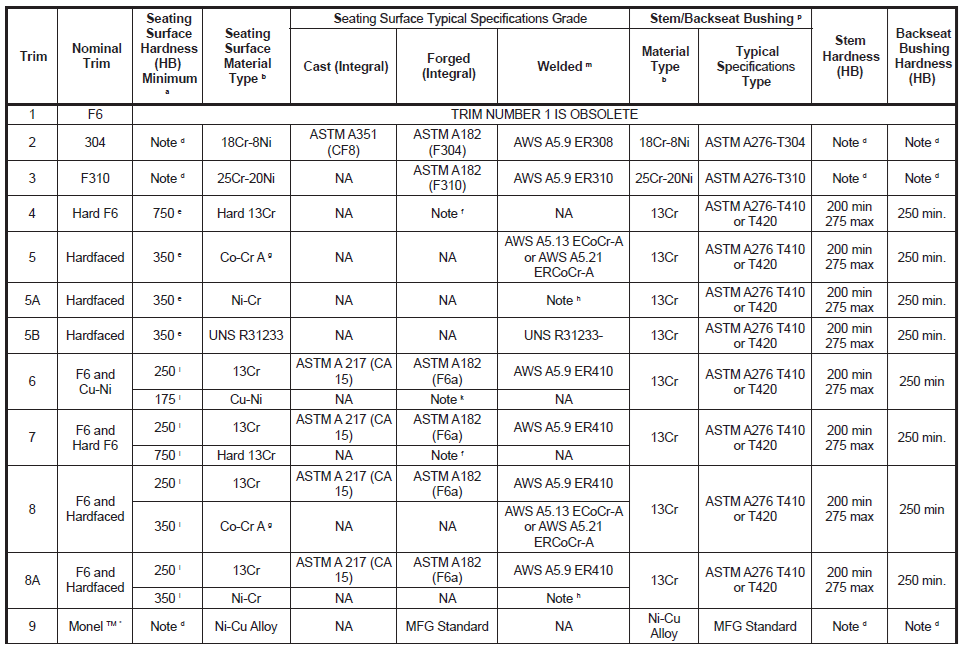

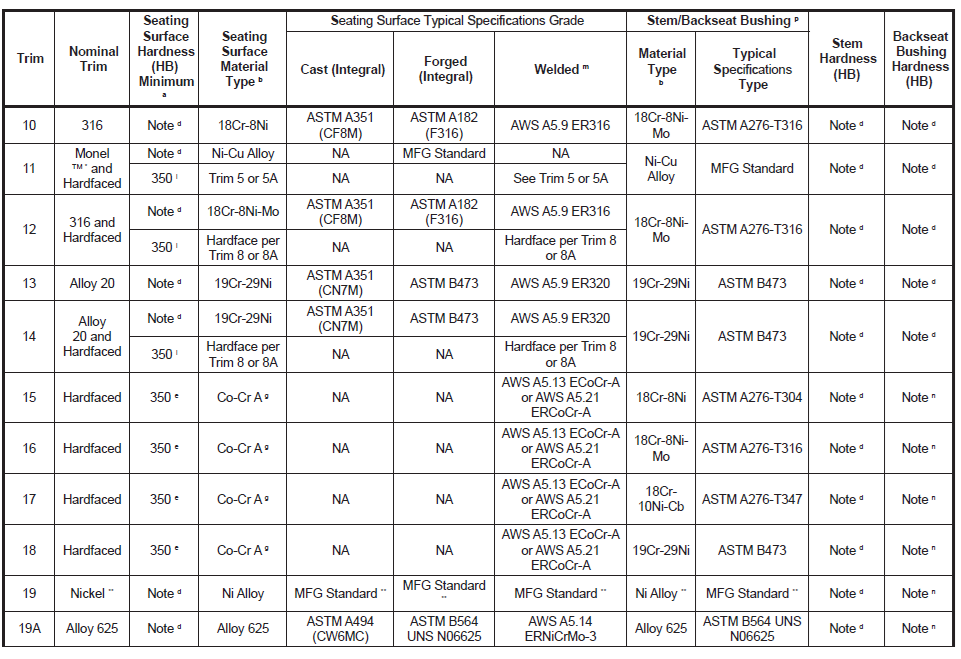

API Valves Trim Table (Trim Chart)
Disclaimer: Data provided about API Trim numbers is based on API Standard 600 and is for informational purposes only. Always consult current API publications to verify information and trim date. Refer API Website: https://www.api.org
Commonly Asked Questions about Valve Trim:
1. What is valve trim and why it is important?
Valve trim refers to the internal components of a valve that come into contact with the flow medium and are responsible for controlling the flow. This typically includes the disc, seat, stem, sleeves, and sometimes the bonnet. These parts determine the valve’s performance in terms of flow control, shutoff, and durability.
2. Why is valve trim material selection important and what are the common materials used for valve trim in corrosive services?
The trim material must be compatible with the process fluid to resist corrosion, erosion, and wear. Improper material selection can lead to premature failure, leakage, or operational inefficiencies. Common trim materials for corrosive services include:
- Stainless Steel (SS316, SS304) – General corrosion resistance.
- Duplex Stainless Steel (UNS S31803) – Better chloride resistance.
- Hastelloy (C276, C22) – For highly corrosive acids (HCl, H₂SO₄).
- Monel (Alloy 400/K500) – For seawater and hydrofluoric acid.
- Titanium – Excellent for chlorides and oxidizing media.
3. What is meant by ‘hard-faced’ valve trim and when would you recommend hard-faced trim (e.g., Stellite 6)
Hard-facing refers to applying a wear-resistant material (like Stellite) to the surface of trim components such as the seat and disc to increase their resistance to erosion, abrasion, or galling.
Hard-faced trim (e.g., Stellite 6, Tungsten Carbide) is recommended for:
- High-pressure, high-temperature (HPHT) services (e.g., steam, oil & gas).
- Abrasive or erosive fluids (slurries, sand-laden fluids).
- Frequent cycling applications to reduce wear.
4. What is a ‘trim number’ or ‘trim code’ and what is the difference between Trim No. 5 and Trim No. 8 in API 600?
Trim number or code is a standardized designation (e.g., as per API 600 or API 602) used to identify a specific combination of materials used for the valve’s trim components.
Trim No. 5:
- Seat/Disc: 13% Cr (410 Stainless Steel)
- Stem: 13% Cr (410 SS)
- Used for general service, moderate corrosion resistance.
Trim No. 8:
- Seat/Disc: 13% Cr (410 SS) + Stellite hard-facing.
- Stem: 13% Cr (410 SS)
- Used for erosion/cavitation resistance (e.g., steam, high-velocity flow).
5. How does valve trim affect control valve performance?
In control valves, trim design directly impacts flow characteristics, cavitation resistance, noise generation, and throttling capability. Specialized trims like cage-guided, multi-stage, or low-noise trims are engineered to manage pressure drop and prevent damage from cavitation or flashing.
6. What’s the difference between balanced and unbalanced valve trim?
Balanced trim includes features like pressure equalizing ports or double-seated designs that reduce the force needed to actuate the valve by minimizing the net force on the plug. Unbalanced trim lacks these features, requiring more actuator force and is typically used in smaller valves or less demanding services.
7. When would you recommend a high-alloy or exotic trim material?
In services with highly corrosive, erosive, or high-temperature conditions—such as seawater, acid gases, or high-pressure steam—high-alloy or exotic materials like Monel, Inconel, Hastelloy, or titanium are used to improve durability and extend the service life of the valve.
8. How can valve trim be damaged during operation?
Common causes of trim damage include cavitation, flashing, particulate erosion, corrosion, and improper actuation. Cavitation, in particular, can cause pitting and vibration, leading to leakage or structural failure of the valve.
9. What is anti-cavitation trim and when is it used?
Anti-cavitation trim is a specially designed internal valve configuration that prevents cavitation by controlling the pressure drop across the valve in multiple stages. It is used in high-pressure drop applications where cavitation could otherwise cause severe damage.
10. How does valve trim relate to Class ratings and valve standards?
The trim must withstand the pressure and temperature conditions defined by the valve’s pressure class (e.g., Class 150, 300) and should comply with applicable standards like API 600, ASME B16.34, or MSS-SP-61. The combination of body rating and trim material ensures valve integrity and safety under operating conditions.
